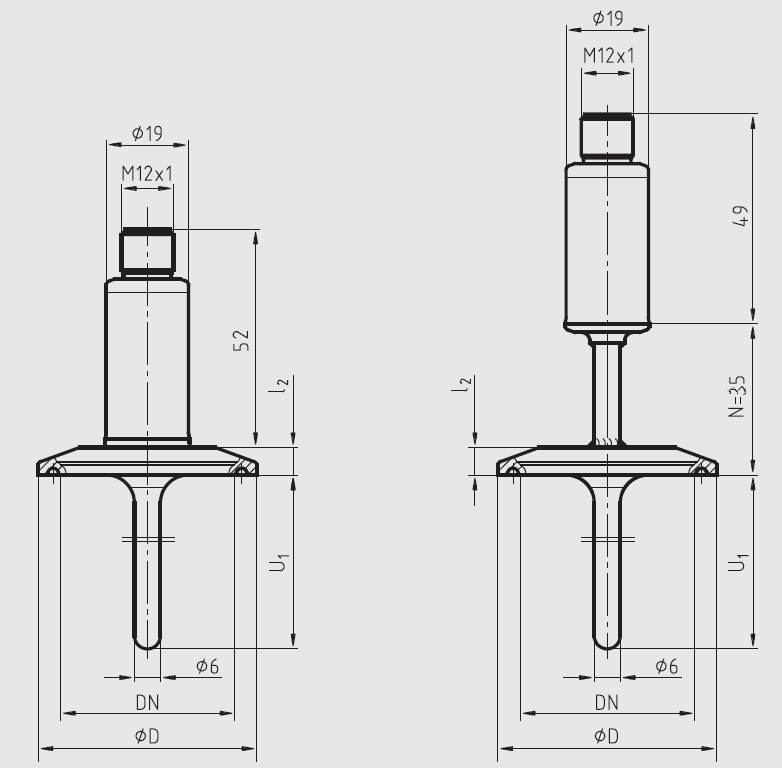

安装尺寸 Mounting Dimension

特点与用途 Features & Applications

l  紧凑的结构设计，一体式无菌接头.

l  材质和表面处理质量遵循卫生设计标准,独特的圆弧设计确保无卫生死角

l  适用于卫生应用的场景：食品，饮料，生物制药，化妆品等无菌设备.

l  Compact design, Integrated aseptic process connection.

l  Materials and surface finish quality follows in accordance with hygienic standards

l  Suitable for hygienic applications: food, beverage, biopharmaceutical, cosmetics and other aseptic equipment .

技术参数 Technical Specifications

量程范围

Measure Range

-30... +250℃

传感器精度

Sensor actuary

Pt100（DIN EN 60751）ClassA

单位

Unit

℃

供电电压

Power supply

DC 10...30V

输出类型

Output

电流 4~20mA，DC

过程连接

Process connection

卫生卡盘 Tri-Clamp

电气接口

Electric connection

M12*1圆形 4-pin

存储温度

Storage temp. range

-40~+100℃

表面光洁度

Surface roughness

Ra ≤ 0.76 μm

Ra ≤ 0.38 μm

Ra ≤ 0.38 μm electropolished

探头材质

Probe material

316L

探头直径

Probe diameter

Φ6mm

探头长度

Insertion length U1

15mm, 30mm, 50mm

防护等级

Ingress protection

IP67

信号报错范围

Current signals for error

downscale ≤ 3.6 mA

upscale ≥ 21.0 mA

响应时间

Response T per IEC60751

τ0.5＜4.5s  τ0.9＜12.0s

订货代码 Order number

订货号

温度范围

接口规格和插深尺寸

输出

市场价

TRA801

0~100℃

3/4"Tri-clamp U1=15mm

4~20mA

8000元

TRA803

0~100℃

3/4"Tri-clamp U1=30mm

4~20mA

8000元

TRA813

0~100℃

1.5" Tri-clamp U1=30mm

4~20mA

8000元

TRA812

0~100℃

1.5" Tri-clamp U1=50mm

4~20mA

8000元

TRA815

0~150℃

1.5" Tri-clamp U1=50mm N=35

4~20mA

8000元

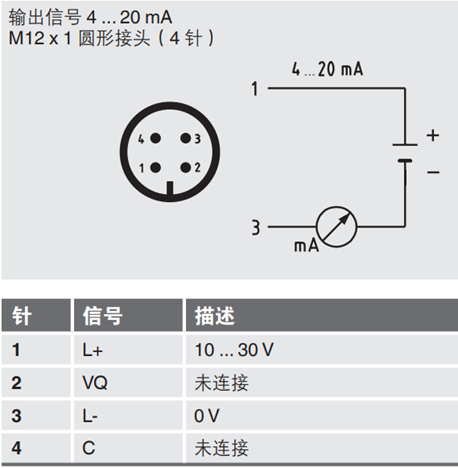

电气接线 Electrical Wiring
